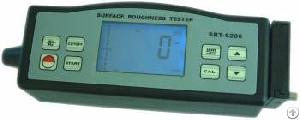

Surface Roughness Tester Srt-6200
Posted at: Offers to Sell and Export | Posted on: Tuesday 7 August 2012 3:03 am | Poster last visit: Tuesday 20 May 2014 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Mechanical instruments
» Surface testers
» Surface Roughness Tester Srt-6200
Product Description:
* Very easy to operate
* Multiple parameter measurement: Ra, Rz
* Highly sophisticated inductance sensor
*
Built-in lithium ion rechargeable battery and control
circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analysing by the optional cable and the
software for RS232C interface.
*Manual or automatic shut down. The tester can be
switched off by pressing the Power key at any time.
On the other hand, the tester will power itself off
about 5 minutes after the last key operation.
2．specifications
Display： 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz
Display Range
Ra: 0.05-10.00um/1.000-400.0uinch
Rz: 0.020-100.0um/0.780-4000uinch
Accuracy: Not more than 10%
Fluctuation of display value: Not more than 6%
Sensor :
Test Principle: Inductance type
Radius of Probe Pin: 10um
Material of Probe Pin: Diamond
Measurement Force of Probe: 16mN(1.6gf)
Probe Angle: 90°
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke: 17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
Evaluation length: 1~5 cut off optional
Driving speed:
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
Resolution : 0.001μm if reading ＜10μm
0.01μm if 10μm≤reading＜100μm
0.1μm if reading ≥100μm
Power Li-ion battery: rechargeable
Operating conditions: Temp. 0-50℃
Humidity <80%
Size：140x57x48 mm (5.5x2.2x1.9 inch)
Weight: about 420 g
Attachment:
Standard Sensor RP-100
Groove Stylus SRP-110
curvature Probe SRP-120
Extension Rod SER-150
Mesurement Stand SRS-1
Standard Sample Plate SSP-180
Cable and Software for RS-232/USB
Bluetooth interface
Company Contact:
Contact Name: Annie Wu
Company Name: Guangzhou Landtek Instruments Co., Ltd
Email:
Tel: 86-020-81609313
Fax: 86-020-81509478
Street Address: Flat C, Kengkou
Electronic Base, No.9 Huaxi Rd.,
Fangcun, Guangzhou, China
Website: https://www.landteknet.com
Member name: landtekwyl
Country:
China
Member Since: 31 July 2012
Total Leads: 69 landtekwyl Import Export Business Leads
Business focus: Instrument, Meter, Gauge
