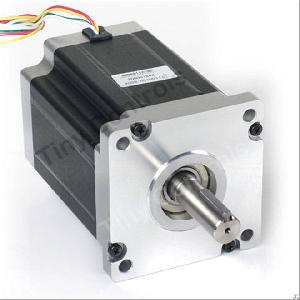

Product Description:
Well efficient, high quality and robust hybrid bipolar motor 150 mm in length, 110 mm in diameter and
having 4 lead wires.
General Specifications
Step Angle : 1.8°
Step Angle Accuracy : ±5% (full step, no load)
Resistance Accuracy : ±10%
Inductance Accuracy : ±20%
Temperature Rise : 80°C Max.(rated current, 2 phase on)
Ambient Temperature : -20°C~+50°C
Insulation Resistance : 100M O Min., 500VDC
Dielectric Strength : 500VAC for one minute
Shaft Radial Play : 0.02Max. (450 g-load)
Shaft Axial Play : 0.08Max. (4200 N ( 20mm from the Flange )50 g-load)
Max. radial force : 60N
Specification
Series Model : T110H150-6504
Motor Length : 150 mm
Phase Current : 6.5 A
Phase Resistance : 0.67 Ohm
Phase Inductance : 13.12 mH
Holding Torque : 19 Nm
Detent Torque : -
Rotor Inertia : -
Leads Wires : 4
Motor Weight : 8.4 kg
