T57h76-2804 Nema 23 Stepping Motor

Posted at: Offers to Sell and Export | Posted on: Thursday 18 December 2014 8:12 am | Poster last visit: Friday 2 January 2015 |

Product Category: Main » Power Generation and Distribution Machinery and Accessories » Power sources » Electric direct current DC motors » Step motor DC » T57h76-2804 Nema 23 Stepping Motor

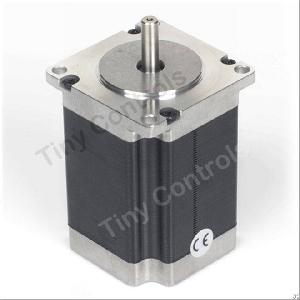

Product Photo:

t57h76 2804 nema 23 stepping motor

Similar Products Catalog:
Products Photos Catalog T57h76 2804 Nema Photos Catalog

Product Description:

Compact, expeditious and strong bipolar motor with length 76 mm and 57 mm in diameter with 4 lead wires.

General


Specifications

Step Angle : 1.8°

Step Angle Accuracy : ±5% (full step, no load)

Resistance Accuracy : ±10%

Inductance Accuracy : ±20%

Temperature Rise : 80°C Max.(rated current, 2 phase on)

Ambient Temperature : -20°C ~ +50°C

Insulation Resistance : 100 M O Min., 500VDC

Dielectric Strength : 500V AC for one minute

Shaft Radial Play : 0.02 Max. (450 g-load)

Shaft Axial Play : 0.08 Max. (4200 N ( 20mm from the Flange )50 g-load)

Max. radial force : 60 N

Other Specifications

Series Model : T57H76-2804

Motor Length : 76 mm

Ph. Current : 2.8 A

Ph. Res. (Ohm) : 1.13

Ph. Inductance : 3.6 mH

Holding Torque : 18.9 Kg-cm

Detent Torque : 480 g-cm

Rotor Inertia : 680 g-cm2

Lead Wires : 4

Motor Weight : 1.0 kg
