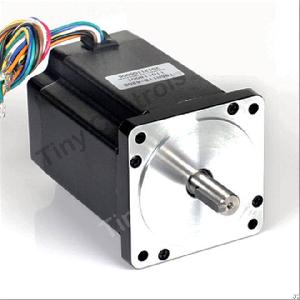

T85h118-4208 Nema 34 8 Wire
Posted at: Offers to Sell and Export | Posted on: Thursday 18 December 2014 8:19 am | Poster last visit: Friday 2 January 2015 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Power sources
» Electric direct current DC motors
» Step motor DC
» T85h118-4208 Nema 34 8 Wire
Product Description:
Highly efficient, reduced weight and compact stepper with length 118 mm, diameter 85 mm and 8 lead wires.
General
Specifications
Step Angle : 1.8°
Step Angle Accuracy : ±5% (full step, no load)
Resistance Accuracy : ±10%
Inductance Accuracy : ±20%
Temperature Rise : 80°C Max.(rated current, 2 phase on)
Ambient Temperature : -20°C ~ +50°C
Insulation Resistance : 100 M O Min., 500V DC
Dielectric Strength : 500V AC for one minute
Shaft Radial Play : 0.02 Max. (450 g-load)
Shaft Axial Play : 0.08 Max. (4200 N (20 mm from the Flange ) 50 g-load)
Max. radial force : 60 N
Other Specifications
Series Model : T85H118-4208
Motor Length : 118 mm
Ph. Current : 4.2 A
Ph. Res. (Ohm) : 0.9
Ph. Inductance : 6.0 mH
Holding Torque : 87 Kg-cm
Detent Torque : 2.4 kg-cm
Rotor Inertia : 2700 g-cm2
Lead Wires : 8
Motor Weight : 3.8 kg
Company Contact:
Contact Name: Anil Jangra
Company Name: Tiny Controls Pvt Ptd
Email:
Tel: 9911193210
Fax:
Street Address: C-55, Nishat Park,
Kakrola
New Delhi, Delhi 110078
India
Website: http://www.tinycontrols.com
Member name: tinycontrols
Country:
India
Member Since: 17 December 2014
Total Leads: 37 tinycontrols Import Export Business Leads
Business focus: Stepper Motor, Motion Controllers, Power Supplie, Pulse Generators, Controller Panels, High Spee Spindles, Stepper Drivers, Couplings
