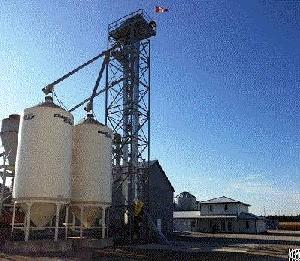

Product Description:
A mechanical machine consisting of a series of buckets attached to EP belt or steel cord belt as its
traction component and used to haul materials vertically. TDG is an advanced version of TD bucket elevator in terms of capacity and conveying distance. Able to carry materials with bulk density less than 1.8 t/m³. Elevating distance up to 80 m. Able to handle materials of temperature not more than 80°C, and not more than 120°C if apply heat-resistant belt. Uses two types of conveying bucket which are Zh type for wet, cakey materials, and Sh type (deep bucket) for dry, loose materials. EP belt and steel cord belt are tension resistant, corrosion resistant, and provide excellent surface quality.
Working Principle
A series of buckets attached to conveying belt with pulleys located at the top and bottom. The bucket is filled up with material and conveyed to the head terminal. Under the centrifugal force of the parabolic design, the materials will be thrown from the bucket into the discharge chute. Driving device which adopts vertical shaft gearbox drives the pulleys to operate the motion of conveying buckets in circular. After discharging materials into the discharge chute, empty buckets driven back to the bottom and repeat the process.
Features and Advantages
More stable and reliable operation.
Larger capacity and higher conveying distance.
High conveying speed with smooth transmission.
Securely sealed body, therefore low noise pollution.
Low maintenance and spare parts cost.
Long operation span.
Advanced design to ensure machine efficiency.
Adopts counter weight tension device at the bottom part for automatic take-up.
Applications
Widely used in mining, metallurgy, chemicals, power plant, agriculture, quarry industries etc. to transfer materials in the form of powder, granular, bulk, grinded and non-grinded block.
