Product Description:

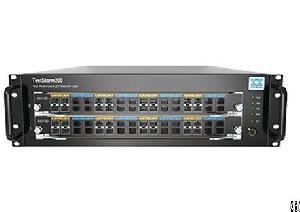

TestStorm Series Chassis
Network Performance Test
Network Testing Equipment
High performance Layer
2-7 unified platform delivering comprehensive Ethernet testing solutions for IP forwarding devices in each stage of R&D, experiment, quality control, performance monitoring and production line test
High performance Layer 2-7 unified platform delivering comprehensive Ethernet testing solutions for IP forwarding devices in each stage of R&D, experiment, quality control, performance monitoring and production line test.
With support of high performance 10G and 10/100/1000M load modules TestStorm can deliver an ideal cost effective L 2-7 protocol testing and emulation solutions.
Full IPv4 and IPv6 protocol stack support, per port simulate tens of millions of interfaces and realistic connections.
Key features
Support SFP+, SFP, RJ45 interfaces on 10G and 10/100/1000Mbps
Support Layer 2-7 protocol emulations, provide a realistic network environment
Multi-user login with easy remote access via a network
Daisy chain of chassis with all ports synchronization
Graphical user interface for configuration, data capture and real-time analysis
Support TCL for automating test control
Test suit based on RFC2544, RFC2889 and RFC3918
Specifications
Model TestStorm200
Dimension 3U, 2-slot rack chassis
1000M Ports Up to 32
10G Ports Up to 8
Power AC 110~240V
CPU Intel dual-core HF CPU
System Control Reset button, Power switch
Status Indicators Power, Fan, Temperature, Power of slots
Temperature 0℃-50℃
Humidity 0-95%, RH
Load Module Available X6000 Series, X8000 Series
Size 489mm×393.5mm×110mm
Weight 13kg
X series load module
High performance and full-specification Ethernet test modules running on TestStorm series platform, providing a full-function Ethernet test solution.Armed with 36-core and more powerful processor, X series load modules deliver a unprecedented performance for complete Layer 2-7 network testing.Classified by the port rate: - X6000 series support 10/100/1000 Mbps per port - X8000 series support 10 Gbps per port.
Model Port Number Port Rate Description
X6004d 8 rj45:10/100/1000m sfp:100/1000m 4 rj45 + 4 sfp ports, rj45/sfp port (combo), up to 4 port using at the same time
X6008d 16 rj45:10/100/1000m sfp:100/1000m 8 rj45 + 8 sfp ports, rj45/sfp port (combo), up to 8 port using at the same time
X6016d 32 rj45:10/100/1000m sfp:100/1000m 16 rj45 + 16 sfp ports, rj45/sfp port (combo), up to 16 port using at the same time
X8002F 2 SFP+:10G SFP:1000M 2 SFP+ ports
X8002F 4 SFP+:10G SFP:1000M 4 SFP+ ports
