Product Description:
Specification:
1. Model: OF050CAC
2. Resolution: 800 x 480
3. Power supply: 3.3V
4. Interface: Digital
24-bit RGB
5. ic: ili5960+ili6122
6. View Direction: 12 o’clock
7. Touch Panel: CTP
Mechanical Data:

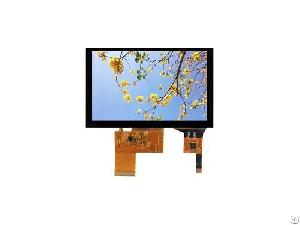

This technical specification applies to 5.0" color TFT-LCD panel. The 5.0" color TFT-LCD panel is
designed for GPS, camcorder, digital camera application and other electronic products which require high quality flat panel displays. With High Resolution: 800*480. is a transmissive type color active matrix liquid crystal display (LCD), and this product is composed of a TFT LCD panel, driver ICs, FPC, backlight unit.
Item Dimension(m*m)
Module dimension: 50.0 x 69.2
View area: 45.2 x 59.5
Active area: 43.20 x 57.60
Pixel size: 0.18 x 0.18
