Product Description:

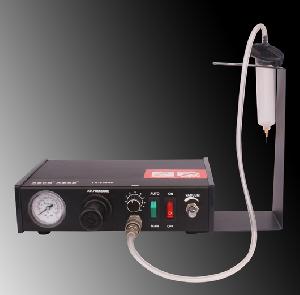

T&H Quantification Dispenser
Features
Handles all fluids
Timed or steady operation
Has
an analog timer with a knob to arrive dosing require.
Vacuum control keeps thin fluids from dripping
Use of metal quick connectors, loading and unloading more convenient, durable
Foot pedal or ring switch can controlled
Complete with an accessory dispensing kit
Benefits
Makes dots, beads and fills
Clean, drip-free cutoff
Greater process control
Better product quality, reliability and appearance
Less rework and fewer rejects
no fluid waste and mess
Simplified training for new workers
Models
T&H-2004K Dispenser 110V-CE
T&H-2004K Dispenser 220V-CE
Specification:
Standards: CE Approved Control: by air and electric
Operating Model: Manual, Timer Leak-proof function: Vacuum device Cycle Initiate: Foot Pedal, Finger Switch Dispensing time: 0.01 - 31 seconds
Repeatability: +/-0.05% Frequency :>600times/minute
Air output: 0.1bar-7bar
Air input: 1-7 bar (100 psi) maximum Power: <15W
Input voltage: 110 VAC or 220 VAC
Internal Voltage: 24 VDC Weight: <3Kg
Size: 24.10x21.00x7.00cm
Operating Conditions:
Temperature: 5°C to 45°C (41°F-113°F)
Humidity: 85% RH at 30°C non-condensing
