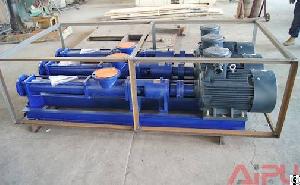

The Screw Pump For Decanter Centrifuge In Drilling Fluid Process System
Posted at: Offers to Sell and Export | Posted on: Tuesday 11 July 2017 9:08 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Industrial pumps and compressors
» Pumps
» Screw Pumps
» The Screw Pump For Decanter Centrifuge In Drilling Fluid Process System
Product Description:
A Centrifuge feed pump is a positive-displacement pump that use one or several screws to move fluids
or solids along the screw axis. It is a single screw rotates in a cylindrical cavity. thereby moving the material along the screw’s spindle.
Model Speed(rpm) Capacity(m3/h) Pressure(Mpa) Head(m) Motor(KW) Outlet Flange (mm) Permitted Solids Dia.(mm) Fiber Length (mm)
Apg35-2 960 8 1.2 120 4 50 3 40
Apg40-1 12 0.6 60 4 65 3.8 45
Apg40-2 12 1.2 120 5.5 65 3.8 45
Apg50-1 20 0.6 60 5.5 80 5 50
Apg50-2 20 1.2 120 7.5 80 5 50
Apg60-1 30 0.6 60 11 100 6 60
Apg60-2 30 1.2 120 15 100 6 60
Apg70-1 720 45 0.6 60 11 125 8 70
Apg70-2 45 1.2 120 15 125 8 70
Apg85-1 65 0.6 60 15 150 10 80
Apg85-2 65 1.2 120 18.5 150 10 80
Apg105-1 145 0.6 60 22 200 15 110
Apg105-2 145 1.2 120 30 200 15 110
Apg135-1 350 0.6 60 37 250 20 150
Apg135-2 350 1.2 120 45 250 20 150
Centrifuge feed pump is a positive-displacement pump that use one or several screws to move fluids or solids material along the screw axle. There are single screw pump, double screw pump, the triple screw pump, as well as the quintuple screw pump. For drilling mud process, we use the screw pump to transfer drilling fluid to Decanter Centrifuge from desilter tank or centrifuge tank
Screw pump transfer drilling fluid via the Screw Conveyor rotation. Center screw pole is the positive pole, the two sides screw conveyor are negative pole. Negative poles rotate at opposite direction with positive pole.
Actually when the screw conveyor is rotating, lower V room will become large. V room will close against fluid sucked. Closed room will be pushed forward along axle. Then new suction cavity generates on suction end. One and one closed cavity move forward, the fluid will be pressed out.
Compared to other pumps, screw conveyor is hard to lead swirl. This help much to maintain pump capacity. It is not sensitive to viscosity so it is capable to transfer material with high viscosity.
Features of AIPU Centrifuge feed pump
1. The stable velocity.
2. Smaller pulsation on pressure.
3. Self-suction feature.
4. Low noise.
5. High efficiency.
6. Long operational life with reliable performance.
7. High quality S.S304~316L and carbon steel material optional.
How To Choose a screw pump?
1. Confirm do you need slurry pump in which part or to achieve what function?
2. Make certain about flow rate we need.
3. Material of wet parts. Carbon steel, S.S304, or S.S316L?
4. If any further customization on screw pump.
