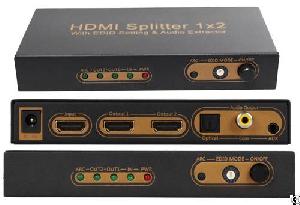

Three Port Hdmi Splitter With Edid Setting And Arc And Audio Extractor
Posted at: Offers to Sell and Export | Posted on: Wednesday 23 November 2016 6:55 am | Poster last visit: Wednesday 28 February 2018 |
Product Category: Main
» Domestic Appliances and Supplies and Consumer Electronic Products
» Consumer electronics
» Audio visual equipment accessories
» SCART splitter box
» Three Port Hdmi Splitter With Edid Setting And Arc And Audio Extractor
Product Description:
Product Description
2 Port HDMI Splitter with EDID Setting & ARC & Audio extractor
Product
Feature
1. 1X HDMI input and 2X HDMI output, can sync separation HDMI audio signal. Supports 1x SPDIF optical and 1x SPDIF coaxial digital audio outputs, and 1x 3.5mm analog audio output
2. HDMI supports Full HD, 3D and 4K2K video
3. Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
4. Support ARC audio output
5. Supports 16 built-in EDID mode, can enhance the signal format match between different devices
6. LED indication: when source or sink is working, LED relative to is light.
7. 24bit /192KHz DAC
8. No loss of quality
9. Installs in minutes
10. DC5V power adapter
Product Specification/Models
1. HDMI resolution: up to 4K, 30Hz, 1080P, 1080I, 720P, 576P, 480P, 60Hz
2. Support video color format: 24bit/deep color 30bit, 36bit
3. HDMI Audio Format: DTS-HD, Dolby-TrueHD, LPCM 2, 5.1, 7.1CH, DTS, Dolby-AC3, DSD
4. SPDIF Digital audio format: Dolby Digital (AC3), DTS, LPCM 2CH
5. HDMI Max bandwidth: 300MHz
6. HDMI Max baud rate: 9Gbps
7. Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
8. Input/Output DDC signal: 5Volts p-p (TTL)
9. DAC sample frequency range: 32~192 KHz
10. DAC Bit rate range: 16~24 Bit
11. Analog output level(1kHz@0dB): 2V RMS
12. HDMI input cable distance: less than 15m AWG26 HDMI standard cable
13. HDMI output cable distance: less than 15m(1080P)/8m(4K) AWG26 HDMI standard cable
14. Max working current: 600mA
15. Power adapter format Input: AC 100V~240V 50HZ/60Hz, DC5V/1A
16. Operating Temperature range: -10 to +55 degree Celsius
17. Storage Temperature range: -20 to +60 degree Celsius
18. Operating Humidity range: 10 to 90%RH (No Condensation)
19. Storage Humidity range: 5 to 95%RH (No Condensation)
20. Case Dimension (L x W x H): 139x64x22 (mm)
21. Weight: 215g
Company Contact:
Contact Name: Jeena
Company Name: Zingcon Co., Ltd
Email:
Tel: 075528193746
Fax: 075529577856
Street Address: Minzhi, Longhua,
Shenzhen, China
Shenzhen, Guangdong 518131
China
Website: http://www.zingcon.com
Member name: jeenazingcon
Country:
China
Member Since: 10 November 2016
Total Leads: 9 jeenazingcon Import Export Business Leads
Business focus: Adapter, Charger, Hdmi Realated
Chat:
