Three Roller Plate Bending Roll Machine

Posted at: Offers to Sell and Export | Posted on: Wednesday 20 March 2019 4:24 am | Poster last visit: Friday 16 October 2020 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Metal forming machinery and accessories » Metal rolling machines » Rolling press » Three Roller Plate Bending Roll Machine


Product Photo:

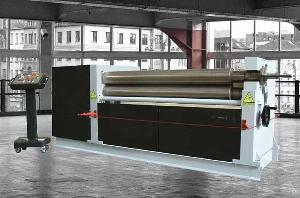

roller plate bending roll machine

Similar Products Catalog:
Products Photos Catalog Roller Plate Bending Photos Catalog

Product Description:

3 Roller plate bending roll has the most common design in the plate rolling machine market, with a fixed



top roll and two side rolls swing up for sheet metal pre-bending and rolling.

3 Roller Plate Bending Roll is available in Five types: SW11 Mechanical Symmetry Three-roller Bending Roll, SW11X-B Mechanical Level Down Three-roller Bending Roll, Asymmetry 3- Roller Bending Roll, SW11SNC Upper Roller Universal Three-roller Bending Roll, 3-Roller Symmetry Bending Roll for Shipbuilding.

Costing less than a four roll bending machine, can bend roll sheet metal from 6mm to 100mm thickness, the ideal choice for limited production cost.

Asymmetry 3-roller:

Small pre-bend straight edge

CNC controlled, High precision of the ring system

Coils of generatrix for both Cylinder and Cone

Designed for small and thin plate to bend the roll

Mechanical symmetry:

Simple structure, Convenience operation, Movable operation table

Keep standard height of lower-roller, convenience to feeding and operating.

Machine frame integral quenching eliminates stress, never deformation

Best cost-effective choice for architecture industry, vehicle maintenance industry and machinery factories.

Mechanical level down:

Upper roller and two bottom rollers can move horizontally separately or synchronously

Convenient to roll taper workpiece with full generatrix

Can finish pre-bend and roll of thin and thick plate at the same time

High accuracy, Upgraded version of SW11 Mechanical Symmetry Three-roller Bending Roll

Upper roller universal:

Adjustable in horizontal direction with pre-bending, finished product with super accuracy

Various bend shapes, correct the shape of formed workpiece, need no extra equipment

Bend tube-shaped, arc-shaped or tapered work parts at normal temperature

SW11SNC upper roller universal three rollers rolling machine is a good choice for people who want to bend large and thick plate (usually >16x2000)

Upper roller universal three rollers can be used to manufacture wind power tower, petroleum Pipeline and pressure vessel, etc...
