Tku2 Surge Protection Device

Posted at: Offers to Sell and Export | Posted on: Saturday 17 November 2007 8:02 am | Poster last visit: Wednesday 27 May 2009 |

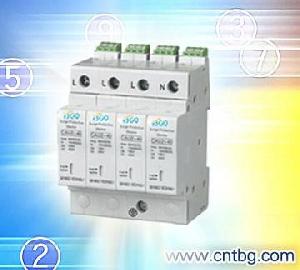

Product Photo:

tku2 surge protection

Similar Products Catalog:
Products Photos Catalog Tku2 Surge Protection Photos Catalog

Product Description:

Application

-TKU2 surge protection device SPD, with two thunderbolt protection chips, one normal chip


and a spare chip in the module. When the normal chip comes across thunder stroke or aging deterioration, the spare chip will be put into service autom-atically, and meanwhile, send signal for alarm.

Construction and Feature

-Plug-in type function unit makes easy replacement

-On-off indicating window

-Quick response less than 25ms

Technical data

-Max.continuous working voltage(Uc): 275V/320V/385V/420V--50Hz/60Hz

-Nominal dischargecurrent(8/20) (In): 5KA 8KA 15KA 20KA

-Max.dischargecurrent(8/20)(max): 8KA 15KA 40KA 65KA

-Voltage protection level(Up): 1.0KV/1.2KV/1.5KV/1.8KV/2.0KV ℃

-Response time(tA): ≤25ns

-Operating temperature range:-40℃+80℃

-Cross-section of mounting wire: Min.1.5mm2solid wire,Max.35mm2 strand wire/25mm2solid wire

-Case material: Fire retardant reinforcement PA66,PC,PBT,fire retardant level VO

-Protection level: C,D



Company Contact:

wenzhoutbg photo
Contact Name: Ms. Linda Long
Company Name: Shanghai TBG Electric Co., Ltd.
Email: Email
Tel: +86-577-27870007
Fax: +86-577-27870087
Street Address: 7th floor, Hualian Edifice,
Liushi, Wenzhou, Zhejiang, China
Website: http://www.cntbg.com
Member name: wenzhoutbg
Country: China-CN China
Member Since: 18 September 2007
Total Leads: 54 wenzhoutbg Import Export Business Leads
Business focus: Circuit Breaker, Fuse, Meter, Energy Saving Lamp, Transformer, Starter, Relay, Contactor, Terminals, Switch, Cable Accessories, Stepper Counter
