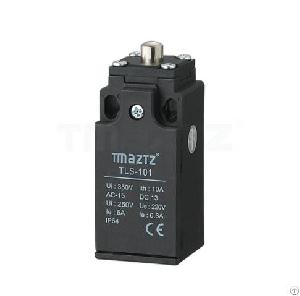

Tls-101 Sealed Plunger Actuator Limit Switch
Posted at: Offers to Sell and Export | Posted on: Monday 14 April 2025 6:36 am | Poster last visit: Monday 14 April 2025 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Electrical switches and accessories
» Limit switch
» Tls-101 Sealed Plunger Actuator Limit Switch
Product Description:
What is mini limit switch?
A small limit switch is a mini switch that can be mounted on a relatively
stationary object (such as a fixed frame, door frame, etc., referred to as a stationary object) or on a moving object (such as a traveling car, door, etc., referred to as an animal). When the animal is close to the static object, the linkage of the switch drives the contact of the switch, causing the control circuit to close the contact to break or break the contact to close. By the switch contact open, close the state of the change control circuit.
And limit switches are actually the most common sensing device in industrial control, providing an electrical signal when an object physically touches and moves an actuator. Due to their easy installation, reliability and rugged design, they are suitable for a wide range of applications and harsh environments. Limit switches are available in a variety of configurations, such as rollers, plungers, etc., and we can make them to your specifications. Contact us!
Characteristics
Operation speed 0.5mm-50cm/sec
Operating frequency Electical: 30 operations/minute
Contact resistance 25mΩ max. (initial value)
Insulation resistance 100mΩ min. (below 500VDC)
Dielectric Strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration 10-55Hz, 1.5mm double amplitude
Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)
Ambient Temperature -10~+65℃ (With no icing)
Humidity <95% RH
Weight About 59 to 72g（TLS-1）
About 72 to 123g（TLS-3）
Electrical Life Above 500000
Degree of protection IP65
Company Contact:
Contact Name: Bill Lin
Company Name: Yueqing Yongde Electric Co., Ltd.
Email:
Tel: +86-577-62962298
Fax: +86-577-62960171
Street Address: Lingmen Village,
Beibaixiang Town, Yueqing City,
Zhejiang Province
Yueqing, Zhejiang 325603
China
Website: https://www.chinalimitswitch.com/
Member name: chinalimitswitch
Country:
China
Member Since: 20 May 2023
Total Leads: 9 chinalimitswitch Import Export Business Leads
Business focus: Limit Switch, Micro Switch, Safety Limit Switch, Power Push Button Switch, Toggle Switch, Foot Switch
