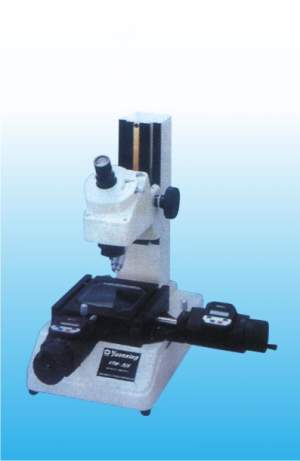

Tool-maker’s Microscopes Ytm-505
Posted at: Offers to Sell and Export | Posted on: Tuesday 9 August 2011 7:56 am | Poster last visit: Wednesday 8 May 2019 |
Product Description:
Usage:
YTM-505 tool-maker’s microscope is an excellent measuring instrument for non-contact inspection
and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line, and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor to be a 2D vision system.
Specifications
Item Model YTM-505
X.Y Axis Travel 50*50mm
Maxi Working Height 115mm
Maxi Loading Weight 5Kgs
Measuring Head Mechanical measuring head
Resolution of Measuring Head 0.001mm
Machine Head Monocular (aimer is adjustable)
Angle Dial Rotary angle: 360°; Minimum angle reading: 6′
Eyepiece (176-116) 15X view diameter: 13mm
Objectives(176-138) 2X working diameter: 67mm
Total Magnification 30X
Contour Illumination 24V/3V tungsten bulb with green filter, the brightness is adjustable
Surface Illumination 24V/3V tungsten bulb, the brightness is adjustable
Power Supply 110/220V AC 50/60Hz
Instrument Dimension 210*333*391mm
Machine Weight 13.5Kgs
Auxiliary Objectives A group of partition board; 1 piece of blue filter
Accuracy (3+L/50)um
Optional Accessories 1X, 3X, 10X Objective,
Company Contact:
Contact Name: Shirley
Company Name: Guiyang Joint-Win Import And Export Co., Ltd
Email:
Tel: 86-851-6578100
Fax: 86-851-6578700
Street Address: 8 Floor, 4 Unit, F
Building, Hequan Road, Guiyang
Guizhou 550002 China
Website: http://www.joint-win.com.cn
Member name: jointwin
Country:
China
Member Since: 09 August 2011
Total Leads: 17 jointwin Import Export Business Leads
Business focus: Vision Measuring Machine, Precise Measuring Instruments Integrated With Optics, Profile Projector, Tool Maker Microscope
