Traditional Industrial Fan2019
Posted at: Offers to Sell and Export | Posted on: Monday 23 September 2019 3:54 am | Poster last visit: Thursday 28 October 2021 | Targeted Countries: India | Korea | Japan
Product Category: Main
» Manufacturing Components and Supplies
» Machine made parts
» Screw machine made parts
» Metal screw machine made parts
» Traditional Industrial Fan2019
Product Description:
The traditional air cool industrial fans are driven by an AC asynchronous motor which drives the reducer,
thereby realizing the rotation of industrial large fans.
Classic II Big Industrial Ceiling HVLS Fans Technical Parameters
Model Fan diameter(m)ft Motor power(kw)hp Rotate speed(rpm) Air volume(CMM)m³/min Full load current(A)380v Max scope of action(㎡）Sqm weight
(kg) noise(dBA)
Bgx-td ii-7e 7.3 (24') 1.5/2.0 0-53 13500 2.95 1800 125 43
Bgx-td ii-6e 6.4 (21') 1.5/2.0 0-53 12000 2.72 1400 113 43
Bgx-td ii-5e 5.5 (18') 1.5/2.0 0-65 9500 2.75 1050 108 43
Bgx-td ii-4e 4.6 (15') 1.5/2.0 0-65 8000 2.85 850 102 43
Bgx-td ii-3e 3.7 (12') 1.5/2.0 0-70 6000 2.72 630 90 43

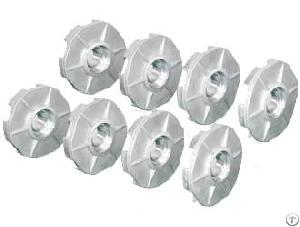

Hub
Import American Airlines AA7075 super hard alloy + Japanese precision high pressure forging technology (sigma B 600Mpa) +T6 heat treatment +CNC precision machining + dynamic balance check quality;
Industrial HVLS fan hub is built by Japanese senior corporation, which focuses on precision forging of aluminum alloy for 60 years. The product quality is absolutely guaranteed. Ensure the product's tolerance and dynamic balance are as accurate and reliable as the hub of a car. Hub and motor cover are put together.
Jiangsu Gaxiao Environmental Technology has various big air fans for sale and it is also one of the industrial ceiling fan manufacturers in China adopting the combination device of anti falling disk and hub top cover, that is to ensure we are the outstanding factory who combines upper, lower chassis with fixed fan wing to solve the safety problem (at present, the other manufacturers mostly use the single chassis so as to reduce cost). At the same time, this reduces the weight of the whole big industrial ceiling fan, and improves the efficiency of the motor to realize perfect combination.
The anti falling disk adopts the lower part closely connecting with hub. This improves the current market situation of connecting anti falling disk with frame, which exists a certain risk of operating.
Motor Reducer
Germany imported NORDL increase the seat number of coaxial helical gear reducer (output shaft diameter 40mm)
- The risk of reduce the risk of radial force, one of the security guarantees
Shell brand top Omala S4 super long life synthetic gear lubricant, maintenance free in 20 thousand hours.
-Improving oil quality and safety.
Germany's top original imported Simrit output shaft double oil seal design
-Reduce the possibility of oil seal leakage, long-term quality assurance;
Automatic exhaust valve of box
-Reducing the risk of oil emulsification and ensuring safety.
Imported SKF-VL reinforced roller bearing
-Reduce the radial offset, long-life warranty;
The new generation of IE2 energy efficient motors with the latest national standards
-More energy saving
Control System
Our big industrial fan used Denmark ‘Danfoss’ transducer, the built-in RF interference filter and the brake chopper have the function of restraining radio interference and braking;
It has the functions of earth fault, over and short circuit protection, and so on;
IP55 protection grade and NEMA1 standard control box;
The box is equipped with Schneider three gear switch and infinitely variable speed knob.
Fan Blade
The industrial fan size blade is amplified by 20% of all the current fan sizes, which will increase the air volume. It also proves that the weight of the whole machine is reduced and the efficiency of the motor is improved.
The fan blade adopts the internal steel cable, the stiffened reinforcement combination, the fan blade and the fixed point line and surface safety method. (at present, two bolts are used in the fixed way in China, and it is easier to aggravate the damage of the fan blade fatigue point).
6 propeller shape, import American Airlines high performance aluminum alloy material:
Aa6063t6511
-Long-life warranty;
Shape design developed by Profili V2 airfoil simulation analysis software
-To ensure the maximum comfort of the fan effect
Jiangsu Gaxiao Environmental Technology Co., ltd is one of the most professional hvls fan manufacturers in China, and we have various hvls fans for sale. We welcome merchants from all over the world to cooperate with our factory for mutual benefit and win-win, and jointly create a better future.
Company Contact:
Contact Name: Tina Shen
Company Name: Jiangsu Gaxiao Environmental Technology Co., Ltd
Email:
Tel: 0086-13773241305
Fax:
Street Address: Floor 7, No.19 Of
Aigehao Road, Weitang Town,
Xiangcheng District, Suzhou City
Suzhou, Jiangsu 215000
China
Website: https://www.gaxiaofan.com/
Member name: Gaxiaofan
Country:
China
Member Since: 27 May 2019
Total Leads: 13 Gaxiaofan Import Export Business Leads
Business focus: Hvls Fan, Ceiling Fan, High Volume Low Speed Fan, Large Fan, Industrial Fan
Chat:
Verify: Safe Import Export Tips
