Product Description:
√
Electric Backing Plate
√
Trailer Axles
√
Trailer Electric Brakes
√
For
2500 kg Axle
√

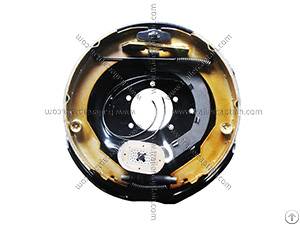

Electric Brake Assembly
√
15” – 16” Wheel
√
12 Inch Drum
√
Trailer Brake System
This 12” x 2” electric brake assembly with handbrake is designed for the trailers, caravans and campers in Australia market, it is operated by a trailer controller and they can provide an ability for the driver to apply the trailer brakes manually. It is used for 15”-16” wheel, and the axle capacity is 2500 kg.
Features
l 12” x 2” electric brakes with hand/parking brake are very popular in Australia.
l E-coated backing plates resist wear and corrosion.
l Trailer electric brake assembly with parking brake is more independent and more reliable than the without parking brake version in some circumstances.
l This 12 inch electric brake magnet is different from 12” off road electric brake.
l Includes brake shoes, magnet, mechanical parking brake lever and backing plate, ready for installation.
l High grade brake linings provide smooth efficient braking.
Specifications
Ø Dimension: 12 inch x 2 inch
Ø Axle Capability: 2500 kg (15”-16” wheel) Axle
Ø Mounting Flange Bolt Pattern: 5 bolts
Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH
Product Composition
² 12” x 2” Electric Brake Shoe Set x 1
² E-coat Backing Plate x 1
² Magnet Lever x 1
² Black Wire Magnet x 1
² Brake Adjuster x 1
² Long Spring x 1
² Short Spring x 1
