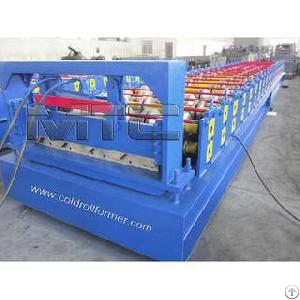

Product Description:
This trapezoidal sheet roll forming machine is controled by the advanced PLC control system and able
to running both automatically and manually. The trapezoidal roofing sheet roll forming machine will be operated manually for roll forming machine running test and trapezoidal sheet roll forming machine installation and training service. When everything is finished and the trapezoidal sheet roll forming machine is ready to produce the trapezoidal roofing sheets, the operator just input the required lengths and quantities into the computer throught the touch screen, the roll forming machine will run fully automatically until the required lengths and quantities are finished.
Flowchart of the Trapezoidal Sheet Roll Forming Machine:
Manual Decoiler/Uncoiler-->Feeding Guide-->Roll Forming Machine-->Hydraulic Cutting-->Runnout Tables.
Detailed Specifications of The Trapezoidal Sheet Roll Forming Machine:
General Introduction of the trapezoidal sheet roll forming machine line:
Material width: 980-1275mm
The effective width:800-1000mm
The thickness of Coil: 0.3—0.8mm
Application: wall sheet and roof sheet
The overall dimensions: 7800mmX1500mmX1300mm
Total weight: Appro.6 T
Main Power: 5.5 KW
The main parts of the trapezoidal roofing sheet roll forming machine line:
Manual Uncoiler; Feeding Guider; Roll forming machine; Hydraulic Cutting system; PLC Control System; Runout Table;
Description of Main Parts:
Uncoiler: Manual Uncoiler
Inner diameter : 508mm
Outer diameter: 1250mm.
Loading weight: 5T
Roll Forming Machine:
Forming speed: 8—12m/min.
forming steps: 16 steps
Bracket: welded with 36 # H beam-steel
Material of Shafts:45# steel;
Diameter of Shafts: 70mm;
Material of Roller: high quality 45#steel coated with hard chromium 0.05mm.
Thickness of Siding Plate: 18mm
Transmission: 12A Sleeve roller chain
Material of Chains: 45#steel with heat treatment: HRC45-50°
Motor Power: 5.5 KW
Hydraulic Cutter of the trapezoidal roofing sheet roll forming machine:
Material of blade:Cr12 with quenched treatment 48-50;
Hydraulic Power: 4 KW;
Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen
Control System of trapezoidal sheet roll forming machine:
Panasonic PLC Control, LCD screen, touch screen, frequency converter
Voltage: 380V/50HZ/3phase
Automatically measure the length and quantity
