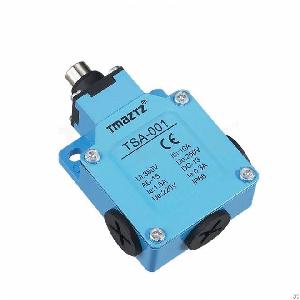

Tsa-001 Sealed Plunger Actuator Limit Switch
Posted at: Offers to Sell and Export | Posted on: Saturday 20 May 2023 6:38 am | Poster last visit: Saturday 20 May 2023 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Electrical switches and accessories
» Limit switch
» Tsa-001 Sealed Plunger Actuator Limit Switch
Product Description:
TSA-001 sealed plunger actuator Limit Switch
■ Stainless steel idler wheel, punch and spring;
■ Selective
M18x1.5 cable gland.
Ratings
Rated voltage Noninductive Load (A) Inductive Load (A)
Resistance Load Lamp Load Inductive Load (A) Motor Load
nc no nc no nc no nc no
125vac 5 5 1.5 0.7 3 3 2 1
250vac 5 5 1 0.5 3 3 1.5 0.8
8vdc 5 5 3 3 5 4 3 3
14vdc 5 5 3 3 4 4 3 3
30vdc 5 5 3 3 4 4 3 3
125vdc 0.4 0.4
250vdc 0.2 0.2
Inrush Current N.C: below 24A, N.O: below 12A
Note:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Characteristics
Operation speed 0.5mm-50cm/sec
Operating frequency Electical: 30 operations/minute
Contact resistance 25mΩ max. (initial value)
Insulation resistance 100MΩ min. (below 500VDC)
Dielectric Strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Vibration 10-55Hz, 1.5mm double amplitude
Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)
Ambient Temperature -10~+65℃ (With no icing)
Humidity <95% RH
Weight About 195 to 246g
Electrical Life Above 500000
Degree of protection IP65
Operating Characteristics
Operating Characteristics Model TSA-001 TSA-003 TSA-012 TSA-021 TSA-041 TSA-031 TSA-051 TSA-061 TSA-071 TSA-081
Operating force OF (Max) 7.84N 7.84N 7.84N 3.92N 3.92N 3.92N 3.92N 1.47N 1.47N 1.47N
Release force RF (Min) 3.92N 3.92N 3.92N 0.98N 0.98N 0.98N 0.98N 0.49N 0.49N 0.49N
Pre-travel PT (Max) 1.8mm 1.8mm 1.8mm 20° 20° 20° 20° 30mm 30mm 30mm
Tripping position TP±10% 2.0mm 2.0mm 2.0mm 22.5° 22.5° 22.5° 22.5° 22.5° 22.5° 22.5°
Movement differential MD (Max) 1.2mm 1.2mm 1.2mm 10° 10° 10° 10° 14° 14° 14°
Over travel OT (Min) 4.0mm 4.0mm 4.0mm 75° 75° 75° 75° 20mm 20mm 20mm
Total travel TT (Min) 5.8mm 5.8mm 5.8mm 95° 95° 95° 95° 50mm 50mm 50mm
Rotary indexing 22.5° 22.5° 22.5° 22.5°
