Product Description:
Drill pipe production line:
The production line for the processing and production of oil drilling pipe,
is mainly divided into three steps, by using the upsetting machine, Intermediate frequency quenching and tempering machines, pipe threading lathes and some other machines.
Highlights:
1. Our products have good rigidity.
2. 400T upsetting force can meet all kinds of requirements of drill pipe, oil pipe.
3. 256mm cavity can produce all products of oil pipe, drill pipe, drill collar.
4. The range of process diameter that can be processed: 50mm-127mm.
5. Achieve the production automation.

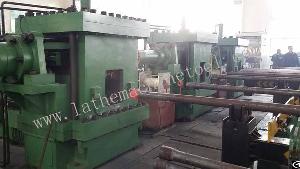

Step1: hydraulic upsetting machine:
Hydraulic upsetting machine is widely used in oilfield, construction, bridge and other industries, is the preferred equipment to carry out large quantities, high precision upsetting forging production, which is very suitable for round steel, steel pipe, drill pipe, sucker rod, oil pipe and other long rod forging and forming.
Video1:
Video2:
Parameter:
Name unit HM400 YPD400B
Upsetting kN 4000 4000
Upsetting travel mm 800 800
Punching speed mm/s ≥ 157 ≥190
Clamping force kN 5608 5400
Upper and lower die opening degree mm 200 180
Dimensions mm 3910×3600×2360 3977×2597×2512
weight kg 21000 19000
STEP2: Intermediate frequency quenching and tempering production line :
TZX series intermediate frequency quenching and tempering production line is a kind of device with a high performance product by our company. It can complete various sucker rod, oil pipe, drill pipe, drill collar, tubing and steel rod heat treatment processing. It adopts the high strength bed design, have a variety of configuration and can be chosen by the customer. The fully automatic feeding device realizes the unmanned operation of the whole production line, which greatly reduces the labor cost.
Video:
Step3:pipe threading lathe
QK series pipe threading lathe is also called oil country lathe, big bore lathe and hollow spindle lathe are economical CNC horizontal lathe, which are not only suitable for oil pipe thread turning, but also widely used in all works of life such as automotive, petroleum, military and other mechanical processing. The lathe has the advantages of high efficiency, low scrap rate, good consistency, etc.
Video:
Application:
The production line is suitable for processing varieties of drill pipe, drill collar, oil pipes, etc.
Our service:
Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time in the whole life of the machine.
Overseas after service center available in some region.
Engineer overseas service available on the requirement of customer(relative cost born by customer).
Free design drawing, free installation, free debugging, Cheap accessories.
Certification:
China Machine Tool Industry Association in October 20, 2011 held the sixth session of the fifth executive director (expansion) meeting adopted the "machine tool industry, " second five "during the work points (Trial)", "to enhance the high-end CNC system and functional components of the supporting capacity "as the industry, " second five "one of the key tasks, and put forward the" two legs to walk "approach.
About Us
We specialized in lathe machine for 50 years, we are professional in precision machining. Covering conventional lathe, heavy duty lathe, high precision Pipe threading lathe, CNC machine tool equipment, spherical lathe, etc. We supply the lathe machine with high quality and pretty competitive price.We are a veteran factory in China, we provide global quality assurance services, more than the shelf life will also provide excellent service and low-cost accessories.
