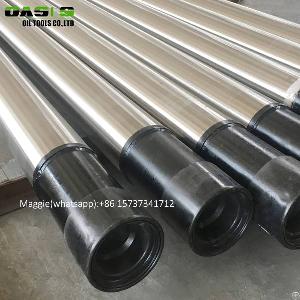

Two Layers Water Well Screen Reinforced Johnson Screen With Non-clogging Construction
Posted at: Offers to Sell and Export | Posted on: Friday 25 October 2019 3:36 am | Poster last visit: Monday 4 November 2019 | Targeted Countries: Brazil | Canada | France
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Industrial filtering and purification
» Filters
» Water filters
» Two Layers Water Well Screen Reinforced Johnson Screen With Non-clogging Construction
Product Description:
two layers water well screen reinforced johnson screen with non-clogging construction:
pipe based sand
control screen with two layer:
Slot size: 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5 to 20mm also achieved upon request.
Material: Low-carbon steel, medium carbon steel, stainless steel (201, 304, 304L, 316, 316L, duplex stainless steel, 2205, 2207
Length: 30mm to 6000mm
Outer Diameter: 73mm to 600mm
Wedge Wire Specifications:0.75X1.5mm, 1X2mm, 1.5X2.5mm, 2X3mm, 2.3X4mm, 3X5mm, 3.5X6.5mm
End connection: Plain beveled ends, flanged or threaded couplings
Pipe based sand control screen is made of perforated base pipe and wedge wire screen jacket. With the casing inside supporting the screen jacket, it enhance hugely the and high tensile strength loads. It is mainly used in deep wells with high pressure and high traction value. So far it Is the most advanced sand control technology under deep well.
For both the base pipe and screen jacket, the specification can be customrized according to requirment.
Applications
Casing pipe and open hole environments.
Suitable for gravel-pack and standalone operations.
Sand free production in vertical or horizontal wells.
Benefits:
Certified slot accuracy along entire screen length;
Superior open area due to their continuous slot openings;
Keystone slot design for the maximum flow, better self-cleaning and minimum plugging;
Wide range of standard configurations;
Withstands high-pressure and high-temperature conditions;
A uniform and efficient well development due to long-term sand control;
Significantly reduce potential damage of surface equipment and subsequent maintenance costs
