Product Description:
Ultra Clear - Low-Iron Glass
Low Iron Glass Product Description
Product low iron tempered glass
Material
Clear float glass
Technique tempered glass low iron glass
Glass type float
Color high-clarity ultra clear
Thickness 3mm-19mm
Size range Min: 300mm X 300mm Max:2440mm X 3660mm
Edge type Flat, pencil, beveled, polished D, C, ogee
Quality Certificate EN12150, BS6206, ISO9001, ROHS, REACH
Payment term 30% TT in advance as deposit, 70% against shipping
Shape flat, bent
application table top, swtich panel
Tempered Low iron Glass,, Ultra Clear Price
Product Introduction

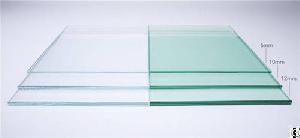

Low-iron glass is a type of high-clarity glass that is made from silica with very low amounts of iron. This low level of iron removes the greenish-blue tint that can be seen especially on larger and thicker sizes of glass.
Low-iron glass is used for aquariums, display cases, some windows, and other applications where clarity is desired.
What is the difference between Low Iron and Clear Float glass?
Our core colour range uses two types of glass:- Low Iron or Diamant glass which is 99% crystal clear glass- Clear Float or Float glass which has an inherent green tinge to it.
Both types of glass have the same performance levels; the only difference is that Low Iron glass is suitable for whites and off-white colours, matching to Resene or Dulux colours, and is more expensive. Whereas the Float glass affects lighter colours due to the green tinge.
Low Iron Glass Product Features
1. Glass blew rate is low
As the ultra-white glass raw materials generally contain less impurities such as NiS, in the raw material melting process control fine, making the ultra-white glass relative to ordinary glass has a more uniform composition, its internal impurities less, thus greatly reducing the possible after the steel The probability of blew.
2. Color consistency
Since the iron content in the raw material is only 1/10 or less of the ordinary glass, the ultra white glass absorbs less of the green band in the visible light than the ordinary glass, ensuring the consistency of the glass color.
Ultra-white glass relative to ordinary glass on the visible light in the red and purple band absorption less
3. Visible light transmittance is high and permeability is good
6mm thickness of the glass is greater than 91% of the visible light transmittance, with crystal clear crystal quality, so that the display is more clear, more highlights the true appearance of exhibits.
UV should be removed in general ultra-white glass does not have this feature, the UV transmittance higher than ordinary glass.
4.HGG ultra clear float high quality optical parameters
Thickness Visible Light
Transmittance Visible Light
Reflectivity Solar
Transmittance Solar
Reflectivity Visible-Infrared
Transmittance Ultraviolet
Transmittance
2mm 90.69 8.3 87.22 7.9 84.15 83.44
3mm 90.25 8.3 85.09 7.7 80.51 80.62
4mm 89.82 8.3 83.04 7.6 77.03 78.18
5mm 89.39 8.2 81.07 7.4 73.71 76.02
6mm 88.96 8.2 79.17 7.3 70.54 74.08
8mm 88.31 8.1 76.51 7.1 66.14 70.6
10mm 87.47 8.1 73.61 6.9 61.56 67.15
12mm 86.25 8 68.53 6.6 53.09 66.23
15mm 85.25 7 67.83 6.3 52.09 65.25
19mm 83.85 7 65.53 6.1 51.01 63.15
Product application
Ultra-white glass can be like other float glass for a variety of deep processing, such as steel, bending, plastic, hollow assembly. Ultra-white glass's superior visual performance will greatly enhance these processing glass functions and decorative effects. Therefore, ultra-white glass has a wide range of uses and broad market prospects.
Ultra-white glass is mainly used in high-grade construction, high-grade glass processing and solar photovoltaic curtain wall and high-grade glass furniture, decorative glass, crystal products, lighting glass, precision electronics industry (copiers, scanners), special buildings。
In China, the application of ultra-white glass is rapidly expanding, in high-grade construction and special buildings on the application has opened the situation, such as the Beijing National Grand Theater, Beijing Botanical Garden, Shanghai Opera House, Shanghai Pudong Airport, Hong Kong Convention and Exhibition Center, Nanjing Chinese Art Center and so on hundreds of projects are applied ultra-white glass. High-end furniture and high-level decorative lighting also began a
