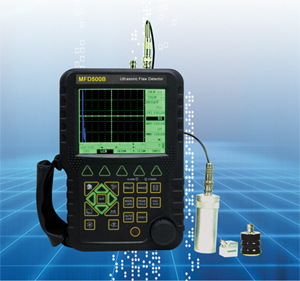

Ultrasonic Flaw Detector Mfd500b
Posted at: Offers to Sell and Export | Posted on: Thursday 30 June 2011 6:44 am | Poster last visit: Thursday 30 June 2011 |
Product Description:
Up to 9999 mm in steel. suitable for use on large work pieces and in high-resolution measurements
Pulse
Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments
Semiautomatic two point calibration
Display
Hi-resolution (320×240 pixels) multi-color TFT LCD with 4 user-selectable
brightness control provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness.
The hi-resolution multi-color TFT LCD display with fast 60 Hz update gives an
“analog look” to the waveform providing detailed information that is critical in
many applications including nuclear power plant inspections.
Range
Up to 9999 mm in steel. suitable for use on large work pieces and in
high-resolution measurements.
Pulser
Pulse Energy selectable among Low, Medium and High.
Pulse Width tunable from 0.1µs to 0.5 µs to match the probes with different
frequency.
Pulse Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments.
Damping selectable among 100Ω、200Ω and 400Ω for optimum probe
performance
Test Modes include Pulse echo, dual and thru-transmission
Receiver
Sampling：10 digit AD Converter at the sampling speed of 160 MHz
Rectification：Positive Halfwave, Negative Halfwave, Fullwave and RF
Analog Bandwidth: 0.5MHz to 15MHz capability with selectable frequency
ranges (automatically set by the instrument) to match probe for optimum
performance.
Gain：0 dB to 110 dB adjustable in selectable steps 0.1 dB, 2 dB, 6 dB, and locked.
Gates
Gate Start: Variable over entire displayed range
Gate Width: Variable from Gate Start to end of displayed range
Gate Height: Variable from 0 to 99% Full Screen Height
Alarms: Threshold positive/negative
Memory
Memory of 100 channel files to store calibration set-ups
Memory of 1000 wave files to store A-Scan patterns and instrument settings.
All the files can be stored, recalled and cleared.
Functions
Semiautomatic two point calibration: Automated calibration of transducer zero offset and/or material velocity
Flaw Locating：Live display Sound-path, Projection (surface distance), Depth, Amplitude, Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.
Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Peam path, Surface Distance and Depth are directly displayed when angle probe is in use.
Both the DAC and the AVG method of amplitude evaluation are available.
Curved Surface Correction feature
Crack Height Measure function
Weld figure feature
Magnify gate：spreading of the gate range over the entire screen width Video Recording and play Auto-gain function
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
A Scan Freeze：Display freeze holds waveform and sound path data B Scan display feature
Real Time Clock
The instrument clock keeps running tracking the time.
Communication
High speed USB2.0 port.
The optional DataPro software helps manage and format stored inspection data for high-speed transfer to the PC. Data can be printed or easily copied and pasted into word processing files and spreadsheets for further reporting needs. New features include live screen capture mode and database tracking.
Battery
Internal rechargeable Li-ion battery pack rated 7.2V at 8800 mAh
8 hours nominal operating time depending on display brightness
8-10 hours typical recharge time
Knob
Operating adjustments are easily and quickly made using the rotary knob.
Specifications
Range: 0 to 9999 mm, at steel velocity
Material Velocity: 1000 to 9999m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.
Test Modes: Pulse echo, dual element and thru-transmission
Pulser: Tunable Square Wave Pulser
Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: Low, Medium and High
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.5 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF
System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier
Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter
Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Dimensions: 263H×170W×61D mm
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Standard packing
1 Main Body 1
2 Straight Beam Probe 4P，1mm 1
3 Angle Probe 4P8*9 60° 1
4 Machine-probe Cable 1
5 Battery Module 1
6 Power Adapter (Charger) 1
7 Support Pillar 1
8 Manual 1
9 Instrument Case 1
10 Datapro Software 1
11 USB communication Cable 1
Company Contact:
Contact Name: Angela Jade
Company Name: Beijing Lanetech Instruments Co., Ltd.
Email:
Tel: 0086 10 84956391
Fax: 0086 10 84956391
Street Address: 1602 Lingdi, Beiyuan
Lu, Chaoyang District, 100012
Beijing, China
Website: https://www.lanetechworld.com
Member name: lanetechworld
Country: China
Member Since: 06 January 2010
Total Leads: 8 lanetechworld Import Export Business Leads
Business focus: Force Gauge, Hardness Tester, Thickness Gauge, Roughness Gauge
