Product Description:

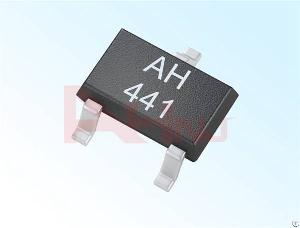

Unipolar Hall Sensor AH441
Features of our Linear Hall Sensor
Rated working voltage 4.5 V ~ 24 V, the
limit voltages as low as 3.5 V;
Operating temperature range: -40℃ ~ 150℃;
Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA;
Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;
Small temperature drift between operating point and release point;
There are variety of packages and out packing options;
No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;
