Product Description:

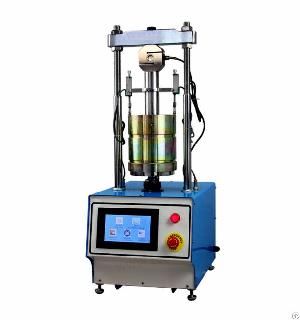

Bearing ratio (CBR) tester is used for carrying out bearing ratio tests on various soil and pavement
base and underlying materials after making specimens in the specified test cylinder.The maximum particle size of the mixture should be controlled within 25mm and not more than 40mm.
Technical Specifications:
Model
Cbr-a50
Standard
Bs 1377-4, en 13286-47, astm d 1883, aashto t 193
Capacity
50kn
Speed
1mm/min/1.27mm/min(can set)
Fast speed
15mm/min
Penetration bar
Diameter 50mm x100mm
Displacement sensor
0-25.00mm/0.001mm
Multi-orifice
2pcs
Loading plate
4PCS(OD 150mm, ID 52mm, weight 1.25KG/PC)
Cylinder mould
ID 152mm x170mm
Power
220v
