Product Description:

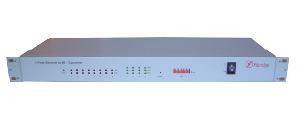

10/100M Ethernet RJ-45 port and V.35 to 1/4/8E1 protocol converter
Interface conversion between E1
and V.35
Support ITU-T V.35, G.703, G.704, G.823
Standalone and chassis module available, support hot-swap
Framed (N*64Kbps) and unframed (2.048Mbps) optional, support continuous and discontinuous timeslots setting
Frame mode support PCM30/ PCM31
CRC/non-CRC auto-negotiation on E1 interface
Support remote bandwidth control, and remote loop back under framed mode.
Support internal clock, E1 recovery clock or V.35 line clock
Provide local, diagnostic and remote loop back test.
For V.35 interface, DCE and DTE mode are optional
Comprehensive LED indicators on front panel, convenient for the diagnosis of equipment working state
16-slot, elaborate cooling design and two redundant power supply
