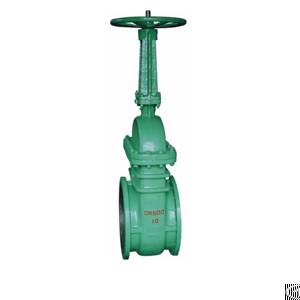

Vacuum Isolated Gate Valve Of Power Plant Valves
Posted at: Offers to Sell and Export | Posted on: Saturday 7 May 2016 7:16 am | Poster last visit: Tuesday 2 August 2016 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Fluid and gas distribution
» Valves
» Gate valves
» Vacuum Isolated Gate Valve Of Power Plant Valves
Product Description:
Product overview
Chief structure features and usages
1. The main body of this series valve uses a casting
and forging structure and has a dual-direction seal of parallel secondary semi-forced dual-sealing and the motions of both the sealing face to its due position and the tapered block to wedge-up are separated to have zero lead age come true.
2. The sealing face is of a small frictional force if motion, lightly opened and closed and has a self compensation function for wearing.
3. Simple structure easy to more than 10 years of long duration.
4. A vacuum sealing structure is set in the filling chamber on the valve cover, which has the action of self-expanding and impacting, the joint faces are sealing with the expansive material of high strength to completely isolate the system from air.
5. Two connection ways of b flange and welding, two ways to drive of heand-and eletric-operation. The valve can be used as the open & close device for the pipelines under the working temperature Less than425degree centigrade and 550 degree centigrade and the working medium of water, steam or air;especially suitable to act as the vacuum isolating sealing for the system of steam turbine's considernation and vacuum negative pressure in steam power plants.
Valve ctrucure type:
Mode1 NKJ61 Vacuum isolating stop valve;Model NKZ44 and NKZ64 Vacuum isolating gate valves.
Manufacture and acceptance standard:
1.Manufacture, acceptance and technical conditions per GB/T12234, GB/T12235.
2. Face-to face dimensions per GB/T12221.
3. Flange sizes per JB/T78-79, GB/T9112-9124.
Material for main parts
Body, Bonnet: 25 or WCB
Valve stem：Cr.stainless steel，25Cr2MoV
Disc：Cr.stainless steel，12Cr1MoVA。
Sealing face：H: alloy steel，Y: carbide alloy
Yoke nut：Al bronze
Packing：Expanding compound graphite
Fastener：High-grade carbon steel，Cr.Mo steel
