Product Description:

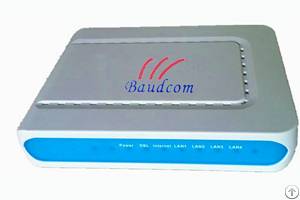

VDSL2 Modem with 4port FE +ROUTER is a versatile, high-speed remote router for home and the small office.
Key
Components / Connectors / Performance
VDSL2 Chipset BRC6368U
VDSL2 LineDriver BRC6302
Flash Memory 4Mbytes
SDRAM for CPU 2*32Mbytes DDR
Console Internal console port (4 pin)
ITU-T K.21 We can comply, but we need 1 month to get the reports.
Interfaces (TR-068 compliant)
LAN 4x 10/100Base-TX MDI/MDIX RJ-45 port
Compliant with following standards:
1. IEEE 802.3/802.3u
2. Hardware based 10/100, full/half, flow control auto negotiation
3. Non-blocking wire speed reception and transmission
4. Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control
5. Broadcast storm protection
6. Automatic address learning, address aging and address migration
7. Integrated address Look-Up Engine, 1 K absolute MAC addresses supported
WAN 1x inner pair RJ-11 VDSL2 port
Data Rate:
Downstream: up to100Mbps
Upstream: up to 50Mbps
Rate Adaptation:
Data rate auto-negotiate in 32 kbps increments
Performance:
TR-067/ TR-100 Interop performance compliant
Physical & Environment
Power
- Input: 110-220VAC, 50/60Hz (Region dependent)
- Output: 12V DC, 0.7A (Switch)
- Dying Gasp: Not Supported
- Power Switch: Push button supported
- Reset Button: Reset to factory default by pushing button for 5 sec.
Operation Temperature
- 32¨H to 104¨H (0¡æ to 40¡æ)
Storage Temperature
- -4¨H to 149¨H (-20¡æ to 70¡æ)
Humidity
- 5% ~ 95% non-condensing
