Product Description:
Model: S-III-O-0510
Type: vertical support spur gear slewing drive
Slewing drive gear ratio: 5.60
Rated
output torque: 20KN.M
Rotation center diameter: 510mm
Total height with adapter flange: 185mm
Gear backlash ≤0.4mm

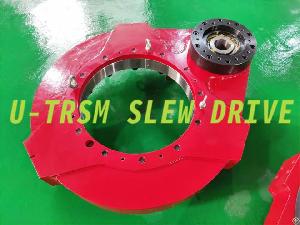

S-III-O-0510 vertically supported spur gear slewing drives are used in the field of industrial automation and are installed horizontally, but the bolts for fixing the slewing drives cannot be installed at the bottom of the slewing drives, but only on the side of the slewing drives. The customer fixes the slewing drives through the bolt holes on the side of the housings, the outer rings of the slewing drives drive the rotating part of the equipment to rotate. The use environment is dusty and the slewing drive is required to have dustproof performance.
According to customer’s requirements, we designed this product to connect the slewing drive through the side bolt holes, after finishing the solution design, U-TRSM conducted a simulated force experiment on similar products in the workshop. We load the slewing drives to the customer’s use load, let the housing side support all the loads at three points, measure the deformation of the housings and verify the rationality of the design through experiments.
Through the analysis of the experimental data, the results show that the design of the three point support on the side fully meets the requirements of the customer. In order to improve the safety factor, we have optimized the design of the housing, which improves the overall strength of the product and is more conducive to processing and production.
If you also have rotary products that need side connection, please contact U-TRSM. We have rich experience and unique ideas in the design of special applications and special products.
