Product Description:
Application: Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Specifically designed for present measuring various mechanical vibration, Use the high-performance acceleration meter, realize the repetitiveness and accurate measurement.
It has the function of testing axle bearing situation.
Product synopsis

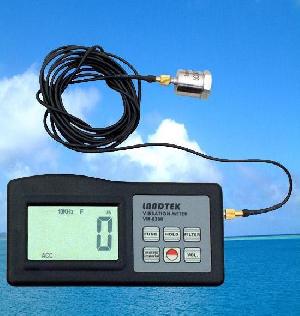

Model: VM6360
Specifications:
Filter baud: D P
Acceleration 10Hz-1KHz 0.1-200m/ms˛ 20.1-400m/ms˛
10Hz-10KHz 0.3-200ft/ms˛ 0.3-1312ft/ms˛
Velocity 10Hz-1KHz 0.1-8.0inch/s 0.1-400mm/s
0.004-16.0inch
Displacement 10Hz-1KHz 0.001-2.0mm 0.001-4.0mm
0.04-80mil 0.04-160 mil
Accuracy:<5﹪
Auto power off
RPM(revolution):5-100000r/min
Frequency:0.1 to 10KHz
Metric/imperial conversion
With RS232C interface
Max hold
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Power supply:4x1.5V AAA(UM-4)battery
Battery indicator: low battery indicator
Dimensions : 124x62x30mm
weight: 120g(not including battery)
