Product Description:

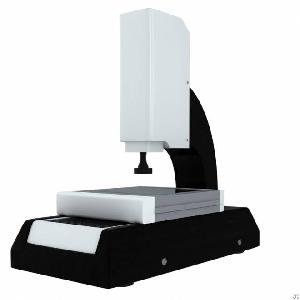

Video Measuring Machine
Characteristics:
1. The design of granite dove tail type is adopted for the
small stroke measuring machine;
2. Surface light is formed by 40 groups of independent light source. Each group is powered by the constant current driver, 200 steps available for adjustment.
3. The machine is equipped with proprietary CNC software, with which the measurement efficiency is enhanced.
4. The dual closed loop motion control system ensures the motor with accurate enough position function while moving at high speed.
5. The original servo motor improves the running speed of the machine, simplifies the interface between the machine and the computer. The computer and the machine are connected through the USB cable and the S terminal cable.
6. Automatic or manual zoom lens can make the image magnified 20-120 times. The optional global leading automatic zoom lens can realize the automatic zooming.
7. The linear scale of the high precision, its stability is quite excellent.
8. Optional Renishaw touch-trigger probes ensure accurate measurement and easily realize 3D measurement.
Optional accessories
Telecentric fixed power lens
Manual zoom lens
Automatic zoom lens
Coaxial top light
Division ring light
Technical parameter:
Model VM3020HD VM4030HD VM5030HD
Glass table size 350*250mm 450*350mm 550*350mm
Stroke (X, Y -axis) 300*200mm 400*300mm 500*300mm
Stroke (Z-axis) 200 (Focus) 200 (Focus) 200 (Focus)
Digital resolution 1um 1um 1um
MPEE ≤(3.0+L/200) (L is the length of the measured, unit: mm)
