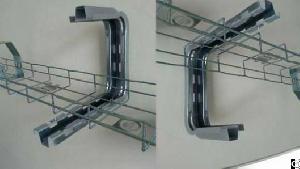

Welded Wire Mesh Cable Tray
Posted at: Offers to Sell and Export | Posted on: Wednesday 4 January 2017 5:35 am | Poster last visit: Wednesday 4 January 2017 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical wire management devices and accessories and supplies
» Wire Raceways Conduit and Busways
» Cable tray
» Welded Wire Mesh Cable Tray
Product Description:
Welded Wire Mesh Cable Tray, Easy for line check, cleaning, Fast heat dispersion, Width 50mm, 100mm,
150mm.
Surface Finish: Zinc Plated, Hot Dipped Galvanized, Electrolytic Polishing, Powder Coating, Polished.
Width: standard wire mesh cable tray width include 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.
Height: standard depth include 35mm, 54mm, 105mm & 150mm.
Specification:
Thickness: 0.5 mm - 2.0 mm (22 - 27 Gauge)
Height: 25 mm - 500 mm (Light, Medium, Heavy Duty)
Width: 50 mm - 1200 mm
Length: 2-10M (can be produced according to appointed length)
Finished: Pre-galvanized (Z80 - Z275), hot dipped galvanized, power coating
Features:
Increase the current carrying capacity of cables.
Takes up to 25 percent less space than ladder.
Hole pattern designed to provide maximum flexibility for positioning cable ties.
Fast speed of installation.
Item is named through Breadth*Height, (For example : 100*50, 200*30), the dimension means the inside dimension. Usually Length of cable tray is 3000mm Breadth have different dimensions, bending height can be divided into 30mm, 50mm, 100mm and 150mm.
3000*450*50mm wire basket cable tray specification:
Size：3000*400*50mm.
Diameter of wire:4mm 5mm.
Load Capacity:50-1000kg.
Mesh size:100*50mm.
Surface treatment:galvanization.
Thickness of galvanization:more than 12μm.
Color:Blue and white.
Company Contact:
Contact Name: Carrie Davis
Company Name: Lionet Cable Trays Co.
Email:
Tel: 0086-318-08928821
Fax: 0086-318-08928822
Street Address: T009, Xinyi East
Street, Anping County, Hebei, China.
Anping, Hebei 053600 China
Website: https://www.wiremeshcabletray.org
Member name: wirecabletray
Country:
China
Member Since: 03 January 2017
Total Leads: 6 wirecabletray Import Export Business Leads
Business focus: Perforated Ladder Cable Trays, Single Rail Aluminum Cable Tray
Chat:
Verify: Safe Import Export Tips
