Product Description:
• Drop testing determines the damage condition of a package to withstand the rigors of handling by people
and machinery in the distribution environment and assess the impact resistance in transportaion environment.
Features:

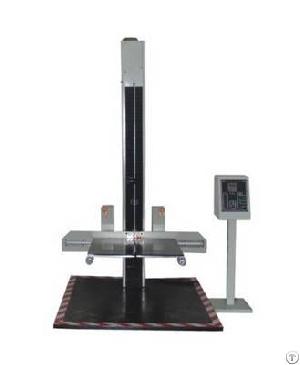

This machine can do the free drop test on surface, corner, edge, it adopts single-arm double-wings structure, electric reset, electronic control device for drop and lift, easy to use; unique hydraulic buffer device greatly increases machine life, stable and safety. Double wings set, so products can be easily placed on.
Parameters:
Drop height:400~1500mm (adjustable)’
Test way: surface, edge, corner
Load: 0~60kg (can be added by customer order)
Display: LED display directly, to avoid error made by human observation
Height adjustment: automatic adjustment by setting the height number in the controller, easy operation and quick.
Specimen max size: 1000X800X700mm(can be added)
Flange size: about 700×350×10mm (single side)
Baseplate: 1200×1400×18mm
Machine weight: about 800kg
Power: AC220 or 380V, 50HZ
