Wire Stripping Machine Cut Strip Twist Stranded Wire
Posted at: Offers to Sell and Export | Posted on: Thursday 19 September 2024 2:43 pm | Poster last visit: Friday 20 September 2024 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Electrical wire and cable and harness
» Electrical wire
» Hook up wires
» Wire Stripping Machine Cut Strip Twist Stranded Wire
Product Description:

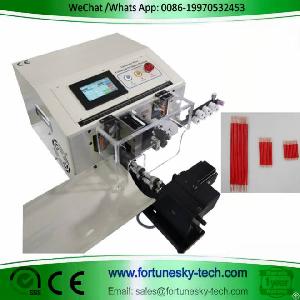

The SWT508-NX2/NX2S: All-in-One Wire Processing Machine
The SWT508-NX2/NX2S is a versatile and user-friendly
automatic wire stripping machine, incorporating advanced automation technology. This powerful machine offers a wide range of features for efficient and precise wire processing in various industries.
User-Friendly Design and Advanced Features:
Intuitive Interface: The user-friendly LCD screen with an English/Chinese language option simplifies operation and parameter adjustments.
Customizable Processing: Set wire length, thrum and line end parameters to meet your specific needs.
Multiple Stripping Finishes: Achieve different levels of stripping finishes for various applications.
High-Performance Functions: Includes functions like high-tension line cutting and casing shearing for optimal processing.
Broad Application Range:
Wide Material Compatibility: Processes various wires, including PVC, Teflon, glass fiber, braided, and single/double electric wires.
Industry Versatility: Widely used in electronics, telecommunications, electrical appliances, motors, lighting, toys, and other industries requiring wire processing.
Technical Specifications:
Model No.: SWT508-NX2/NX2S
Power: 350W
Electrical Connection: 110V/220V 50Hz/60Hz
Operation Interface: English/Chinese (LCD Display)
Machine Dimensions: 450mm x 420mm x 290mm
Wire Length Range: 1-10000mm
Stripping Length: Front End: 0-30mm; Rear End: 0-20mm
Length Accuracy: ±(0.002 x L) mm
Wire Cross Section: Double Wire: 0.1-2.5mm˛; Single Wire: 0.1-4mm˛
Max Conduit Inside Diameter: 6mm
Twisting Method: Double Ended or Single Ended
Wire Material: PVC, Teflon, Braided, Fiberglass Wire
Blade Material: Hard Tungsten Steel
Transport Speed (at 100mm wire length): 3000-6000 pieces per hour
Driving Mode: Four-wheel Drive (Silent Hybrid Stepper Motor, 0.1mm forward per step)
Stripping Speed: Adjustable (0 - slowest; 9 - fastest)
Weight: 38kg
The SWT508-NX2/NX2S Automatic Wire Stripping Machine is a powerful and versatile solution for all your wire processing needs. This user-friendly machine offers exceptional performance, customizable processing options, and broad application compatibility, making it a valuable asset for various industries.
Company Contact:
Contact Name: Robin Chiu
Company Name: Shenzhen Fortune Sky Technology Co., Ltd
Email:
Tel: +8619970532453
Fax:
Street Address: No.2 Hongye
North
7th Road, 138 Industrial
Park,
tangxia Town
dongguan,
Guangdong 523710
china
Website: https://www.fortunesky-tech.com
Member name: FortuneSkyTechnology
Country:
China
Member Since: 23 March 2021
Total Leads: 79 FortuneSkyTechnology Import Export Business Leads
Business focus: Wire Stripping Machines, Wire Crimping Machines, Tubing Cutters, Wire Splice Band Machines
Chat:
Verify: Safe Import Export Tips
