Wooke Symmetric Drilling Tools With Casing Tube

Posted at: Offers to Sell and Export | Posted on: Wednesday 9 August 2017 2:52 am | Poster last visit: Thursday 24 August 2017 |

Product Category: Main » Mining and Well Drilling Machinery and Accessories » Mining and quarrying machinery and equipment » Exploration and development systems » In the hole drills ITH or down the hole DTH long hole drills » Wooke Symmetric Drilling Tools With Casing Tube

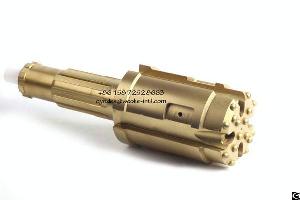

Product Photo:

wooke symmetric drilling tools casing tube

Similar Products Catalog:
Products Photos Catalog Wooke Symmetric Photos Catalog

Product Description:

Wooke Permanent Symmetric Drilling Tools with casing tube step-by-step:

1. When the drilling starts,


the central bit drive the ring bit down the hole, meanwhile the casing shoe and casing tube follow down together.

2. When arriving the bedrock, reversely rotate the tools and the central bit is pulled out while leaving ring bit in the hole bottom.

3. Pouring the concretes into the casing tube or move to next field work process.

Symmetric Drilling Tools with casing tube:

Assembly Code Hammer Drill pipe dia.(mm)

Tgz75-3.5-108/7.5 dhd3.5 76

Tgz80-3.5-114/6 dhd3.5 76

Tgz90-3.5-127/6.5 dhd3.5 76

Tgz103-340-140/6 dhd340a 76

Tgz106-340-146/7.5 dhd340a 76

Tgz121-350-168/10.5 dhd340r 76 / 89

Tgz130-350-168/8 dhd340r 76 / 89

Tgz136-350-178/9 dhd340r 76 / 89

Tgz139-350-183/10 dhd340r 76 / 89

Tgz148-360-194/6.5 dhd360 114

Tgz163-360-219/7 dhd360 114

Tgz163-360-219/12.5 dhd360 114

Tgz218-380-273/11.5 dhd380 114 / 140

Tgz218-380-273/6.5 dhd380 114 / 140

Tgz253-110-324/9.5 dhd110 140 / 194

Tgz338-112-406/9.5 dhd112 194 / 273

Symmetric/Centrex/Symmitrix Drilling System

Symmetric is a concentric drilling system with retrievable pilot bits.

This system drills in any direction and in any type of ground condition.

It is, in fact, the most flexible and efficient overburden system on the market today.

The Symmetric components are made up of:

---A pilot bits with large internal flushing holes and external flushing grooves

---Symmetrical ring bit (reamer) with internal bayonet coupling

---Casing shoe for driving of casing.

The Pilot bits is attached to any common DTH hammer shank.



Company Contact:

No member photo
Contact Name: Cyndee
Company Name: Wooke Rock Drill Equipment Co., Ltd
Email: Email
Tel: +867176343815
Fax: 7176343815
Street Address: Wujiagang Industrial
Zone, Yichang City, Hubei Province,
China Yichang, Hubei 443000 China
Website: http://www.wooke-intl.com
Member name: DTHrockdrillproducts
Country: China-CN China
Member Since: 09 August 2017
Total Leads: 8 DTHrockdrillproducts Import Export Business Leads
Business focus: Dth Hammer Bits, Drill Pipes, Top Hammer Rock Tools, Eccentric Symmetric Drilling Tools, Rc Hammer Tools, Adapters
