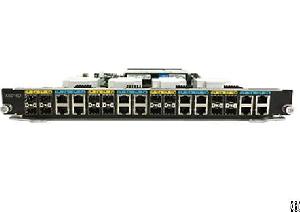

X6000 Series Load Modules
Posted at: Offers to Sell and Export | Posted on: Tuesday 14 August 2018 5:55 am | Poster last visit: Tuesday 14 August 2018 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Cable network tester
» X6000 Series Load Modules
Product Description:
X6000 Series Load Modules
Network Test Modules
Network Performance Test
X6000 series modules support
TeleExplorer, TeleAPP to meet different test needs. TeleExplorer is a standard test suite providing L2-7 test functions with powerful and flexible configuration. TeleAPP is a test suite to provide automated test of RFC2544 /2889/3918 with easy-to-use configuration and necessary test report output. X6000 also support TCL and API to meet customized testing requirements.
Specifications
Model X6004D X6008D X6016D
Port Number 4 * 1000M 8 * 1000M 16* 1000M
COMBO ports
Physical Status Indicators: Tx/Rx
Weight: 0.5kg
Size: 271mm x 35.5mm x 180mm
Peak power requirement: 100W Max
Traffic Generation Traffic generating based on port and stream, per port have 64 different streams
Each stream provide up to 4 saltus step domain with mode of increase, decrease and random
Accurate data rate regulation based on port and stream, support dynamic data rate regulation based on port
Each stream is capable of generating packets of Layer2, IPv4, IPv6, TCP, UDP, TCP-IPv6, UDP-IPv6, ICMPv4, ICMPv6, IGMPv2, ARP, Pause, Goose and custom
Each stream support multiple levels of VLAN and MPLS
Signature block is optional in each stream
Each stream supports user-defined packets and packet length from 60B to 16KB
Payload generation mode: Cycle, Incremented, Random
Traffic Statistics Statistics results can be displayed in the form of data table and chart
Each port can receive up to 1024 streams
Traffic statistics based on streams:
TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency
Traffic statistics based on ports:
TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count (filter patterns include VLAN, MPLS, PPPOE, ARP, IPv4, IPv6, TCP, UDP)
Traffic Capture Each port provides 256M bits capture buffer
RX data frame capture
TX/RX control frame capture
Frame capture based on filter templet
Decode hundreds of protocols
Support captured frame search according to specific conditions
Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.
Protocol Emulation Layer 2-3 Protocol Emulation
Integrated IPv4 and IPv6 dual stack
Protocol emulation on RIPv2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP4, PPPoE Client, DHCP Client, IGMPv2, IGMPv3, GMRP, 802.1x, LDP, 802.3ah
Layer 4-7 Protocol Emulation
Data Each port supports wire-speed traffic generation
TCP connections per second: 2 Million
TCP concurrent connections:32 Million
Support HTTP
Support FTP
Support comprehensive multilayer testing though Layer 2 ~ 7
Software Support TeleExplorer test system
TeleAPP - Test suit of RFC 2544/RFC 2889/RFC3918
Chassis Available TestStorm200
Others Easy-to-use graphical user interface
Support TCL API for customizing tests
More information please view here.
Company Contact:
Contact Name: Liu Ziyuan
Company Name: Beijing Xinertel Technology Co., Ltd.
Email:
Tel: 86-10-82349338
Fax: 86-10-82349339
Street Address: 101, Building No.5,
No.8 Chuangye Road, Haidian
District, Beijing, China
Beijing, Beijing 100085
China
Website: https://www.xinertel.net
Member name: xinertel
Country:
China
Member Since: 14 August 2018
Total Leads: 13 xinertel Import Export Business Leads
Business focus: Network Performance Tester, Portable Ethernet Tester, Comprehensive Ethernet Tester
Chat:
Verify: Safe Import Export Tips
