Yx-9300z Laser Particle Size Analyzer

Posted at: Offers to Sell and Export | Posted on: Monday 28 September 2009 7:53 am | Poster last visit: Tuesday 15 January 2013 |

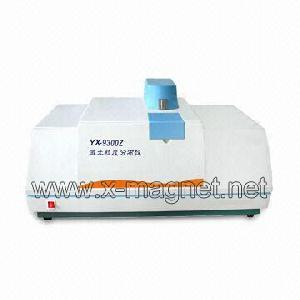

Product Photo:

yx 9300z laser particle analyzer

Similar Products Catalog:
Products Photos Catalog 9300z Laser Particle Photos Catalog

Product Description:

YX-9300Z laser particle size analyzer has many automatic features including: automatic testing, automatic



optical calibration, automatic sample feeding, automatic water supply and drainage, automatically eliminating air bubble, automatic cleaning and so on.

Its software system is more powerful and flexible and makes the particle size analyzer highly automatic, much more convenient to use and performance better.

Technical features:

1. It adopts imported semiconductor lasers of power, long life and good monochrome

2. Using specially designed large-size high-sensitivity photodetector array by large-scale integrated circuit manufacturing process

3. Sample feeding using centrifugal pumps and micro-sample pool

4. It adopts Milosevic Theory and the free distribution model as the data-processing methods

5. High-precision data transmission and processing circuitry and a series of advanced technologies and manufacturing processes are adopted to ensure the equipment accurate and reliable, high test speed, good repeatability, easy operation

Technical Specification:

1. Size range: 0.1um-460um

2. Repeatability error:< 1%(for standard sample D50)

3. Accuracy of error:< 1%(for standard sample D50)

4. Laser: Imported semiconductor laser, 25, 000 hours lifetime

5. Software running environment: Windows 2000, XP

6. Interface: USB mode

7. Photodetectors: 84 (68 ahead, 12 sidewards and 4 rearwards)

8. Test time: Generaly 2-3 mins / times

9. Circulation pool volume: 500 ml

10. Circular traffic: 500?500 ml/min

11. Gross weight: 45Kg

12. Dimension: 800x500x350mm

13. Ultrasonic Power: 50 Watt

14. Power 180W, Voltage 220V, 50/60 HZ

For more detail info, please feel free to visit our website or inquire us at any of your convenience.
