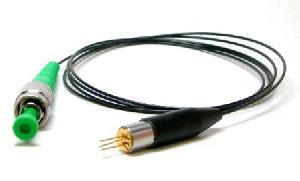

635nm Coaxial Package Laser Diodes With Pm Fiber
Posted at: Wanted International Agents and Distributors | Posted on: Tuesday 1 June 2010 12:46 pm | Poster last visit: Wednesday 2 June 2010 |
Product Category: Main
» Electronic Components and Supplies
» Discrete semiconductor devices
» Diodes
» Laser diodes
» 635nm Coaxial Package Laser Diodes With Pm Fiber
Product Description:
Specifications WSLP-635-002m-PM-PD
Min Type Max
Center Wavelength@25℃ 630nm 635nm 640nm
Spectral
Width (FWHM) 2.0nm
Output Power 2mw
Fiber Core 4um PM Fiber
Slope Efficiency 0.25mW/mA 0.5mW/mA 0.65mW/mA
Monitor Current 0.03mA 0.12mA 0.5mA
PD Reverse Voltage 30V
Fiber Connector FC/ST/SMA905
Fiber Length 80cm 100cm
Threshold Current (Typ.) 30mA 35mA
Operating Current (Typ.) 55mA 65mA
Operating Voltage 2.2V 2.5V
Wavespectrum laser inc can offer the OEM service, such as the coupling with SM PM MM Fiber!
Company Contact:
Contact Name: Linda Lee
Company Name: Wave Spectrum Inc.
Email:
Tel: +86-10-8303 6245
Fax: +86-10-6216 6727
Street Address: 801 Wenlin Plaza,
Haidian Dist., Beijing, China
Website: http://www.wavespectrum-laser.com
Member name: wavespectrumlaserinc
Country:
China
Member Since: 01 June 2010
Total Leads: 17 wavespectrumlaserinc Import Export Business Leads
Business focus: Laser Diodes, Coaxial Package Diode Laser, Fiber Coupled Laser Diodes
Chat:
Verify: Safe Import Export Tips
Min Type Max
Center Wavelength@25℃ 630nm 635nm 640nm
Spectral
Width (FWHM) 2.0nm
Output Power 2mw
Fiber Core 4um PM Fiber
Slope Efficiency 0.25mW/mA 0.5mW/mA 0.65mW/mA
Monitor Current 0.03mA 0.12mA 0.5mA
PD Reverse Voltage 30V
Fiber Connector FC/ST/SMA905
Fiber Length 80cm 100cm
Threshold Current (Typ.) 30mA 35mA
Operating Current (Typ.) 55mA 65mA
Operating Voltage 2.2V 2.5V
Wavespectrum laser inc can offer the OEM service, such as the coupling with SM PM MM Fiber!
Company Contact:
Contact Name: Linda Lee
Company Name: Wave Spectrum Inc.
Email:
Tel: +86-10-8303 6245
Fax: +86-10-6216 6727
Street Address: 801 Wenlin Plaza,
Haidian Dist., Beijing, China
Website: http://www.wavespectrum-laser.com
Member name: wavespectrumlaserinc
Country:
ChinaMember Since: 01 June 2010
Total Leads: 17 wavespectrumlaserinc Import Export Business Leads
Business focus: Laser Diodes, Coaxial Package Diode Laser, Fiber Coupled Laser Diodes
Chat:
Verify: Safe Import Export Tips
