Product Description:

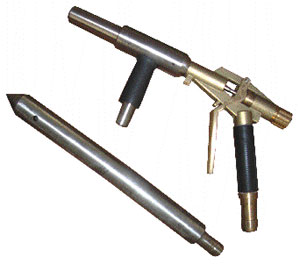

The portable suction-blast gun (model: SSCE2063) is easy to carry. Connect the gun with sand blasting
hose and put another end of the hose in sand drum. Also connect the gun with the air hose(at the handle end) to connect air soursce. Then spray the sand to the surface directly when triggling the gun.
This suction-blast gun is designed for dry abrasive blasting where the air supply is limited or the job is small. The gun is lightweight and compact and ideal where setting up a conventional pressure blast machine would be awkward or inconvenient.
Hand-portable, high performance suction blasting
Spot blasting, touch-up and production blasting
Pick-up wand fits any container, including bagged abrasives
Technical data
Air pressure: 0~12 bar
Abrasive size: 0~1.5 mm
Abrasive consumption: 50~150 kg/h
Max suction length: 10 m(standard: 5 m)
Suction height: 5 m
Work Pressure
3
4
5
6
7
8
9
10
11
12
Air Consume m3/min
2.5
3.1
3.7
4.3
4.9
5.5
6.1
6.6
7.3
7.3
