Single Head Cnc Wood Engraving Machine

Posted at: Wanted International Agents and Distributors | Posted on: Saturday 5 November 2016 5:43 am | Poster last visit: Wednesday 27 November 2019 | Targeted Countries: India | South Africa

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Engraving machines » Single Head Cnc Wood Engraving Machine


Product Photo:

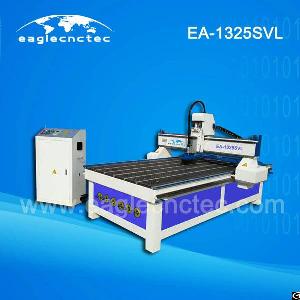

head cnc wood engraving machine

Similar Products Catalog:
Products Photos Catalog Head Cnc Wood Photos Catalog

Product Description:

Agent or Dealer Wanted

Working Size (X Y Z) 1300×2500×200 mm


Driving Motor Stepper

Controller DSP

A11 or NK105G2

Command G-code

Max.Traveling Speed 35, 000 m/min

Max.Working Speed 15, 000 m/min

Work-Holding By vac-sorb or clamp

Vacuum Pump 5.5kw water-ring, flow rate 230CMB/hour

X Y Transmission Helical rack and pinion, HIWIN square linear guide way

Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way

Spindle Origin HSD 3.0kw, air cooling, 0-18000 rpm variable speed

Collet Size ER25, available diameter of cutter φ3.175-φ16mm

Working Power AC 380V/50-60Hz, 3 Ph 4 Wire or customized

Max.Power Consumption 12KW

Net Weight 1200 KGS

Packing Plywood case suitable for sea shipment



Company Contact:

No member photo
Contact Name: Jackie
Company Name: Jinan Eagletec Cnc Machinery Co., Ltd.
Email: Email
Tel: +8613065026945
Fax:
Street Address: Gongyebei Road
Jinan, Shandong 250000 China
Website: https://www.eaglecnctec.com
Member name: JinanEagleTecCNC
Country: China-CN China
Member Since: 27 October 2016
Total Leads: 86 JinanEagleTecCNC Import Export Business Leads
Business focus: Cnc Router, Furniture Machining Center, Fiber Laser Cutting, Cnc Plasma, Cnc Laser, Cnc Bits, Cnc Spare
