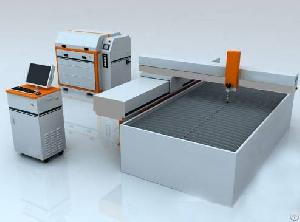

Small China Cnc Water Jet Cutting Machine Price For Sale
Posted at: Wanted International Agents and Distributors | Posted on: Friday 29 November 2013 2:43 am | Poster last visit: Monday 22 July 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Raw materials processing machinery
» Machinery for working wood and stone and ceramic and the like
» Cutting machines
» Small China Cnc Water Jet Cutting Machine Price For Sale
Product Description:
China water jet cutting machine was suit for cutting marble, stone, granite, ceramic, glass, stainless
steel and other metarials.It is widely used in marble mosaic, glass cutting, metal cutting area
Water jet cutting machine SN1515 was equipped with cantilevered platform.it is more convenient to load/unload workpiece.and suitable for 3 directions loading.lt avoid the limit of gantry type which can only load on ends of Y axis.
The cantilevered platform can save space and easy to maintenance.More, it save one side parts of Y axis.so with lower price than Gantry.Cantilevered platform is more suit for worktable less than 2000mm width.
Feature of CNC waterjet cutter SN1515:
1, Special protective cover design which makes the machine more durable and with beautiful appearance.
2, Japan servo motor and imported transmission guide rail with accurate positioning and smooth operation, ensure the accuracy in processing.
3, The working size and worktable can be made according to customers’ special order. Non-standard platform and tooling are available.
4, IPC control based on Windows XP, friendly and easy to operate.
5, Recommended-- Cantilevered waterjet cutting machine platform is save space, practical and economica.
Parameters:
Model
Processing size
Pressure
Main Motor
Cutting precision
Power supply
Repeat positioning
Sn1020c
X-aixs:2000mm
Y-axis:1000mm
Z-axis:150mm
300/380/
420/620Mpa
25hp/18.5kw
0.1mm
380v/50hz
0.02mm
Structure type
Cantilevered cutting platform
Max. Traverse speed
10m/min
Cutting Precision
0.1mm, Repeat positioning precision:0.02mm
Transmission
Imported zero clearance ball crew and line rail imported from Taiwan
Driver motor
Japan YASKAWA AC servo (Ac Motor)
Auto concentrate lubricating system
Main motor
25HP/18.5KW(optional)
Power supply
380V/50Hz
High-pressure Intensifier
Own brand or imported KMT
Waterjet cutting
head Orifice
0.17mm /0.25mm/0.30mm/0.33mm/0.36
Control system
WeiHong(Shanghai) software, can read the drawings very fast and easy operate
CAD/CAM software
AutoCAD, ArtCAM
Company Contact:
Contact Name: Kevin
Company Name: Jinan Sino Waterjet Technology Co., Ltd
Email:
Tel: 86-531-82020399
Fax: 86-531-82020399
Street Address: Jinan, China
Jinan, Shandong 250000
China
Website: http://www.sinowaterjet.com
Member name: sinowaterjet
Country: China
Member Since: 29 November 2013
Total Leads: 7 sinowaterjet Import Export Business Leads
Business focus: Water Jet Cutting Machine, Water Jet Cutter, Cnc Router, Laser Machine
Chat:
